TC74AC151P/F TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74AC151P, TC74AC151F 8-Channel Multiplexer The TC74AC151 is an advanced high speed CMOS 8-CHANNEL MULTIPLEXER fabricated with silicon gate and double-layer metal wiring C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. One of eight date input signals (D0-D7) is selected by decoding of the three-bit address input (A, B, C). Th.

TC74AC151P Features

* High speed: tpd = 5.3 ns (typ.) at VCC = 5 V

* Low power dissipation: ICC = 8 μA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Symmetrical output impedance: |IOH| = IOL = 24 mA (min) Capability of driving 50 Ω transmission lines.

TC74AC151P Datasheet (284.97 KB)

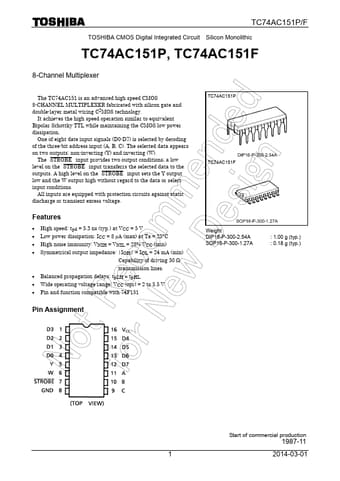

TC74AC151P Datasheet Preview — Preview of TC74AC151P PDF

Datasheet Details

Part number:

TC74AC151P

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

284.97 KB

Description:

8-channel multiplexer.
