TD62082APG - 8ch Darlington Sink Driver

Product Overview

Toshiba Semiconductor

Part number	TD62082APG
Manufacturer	Toshiba Semiconductor
File Size	339.95 KB
Description	8ch Darlington Sink Driver
Datasheet	TD62082APG Datasheet
Note	This datasheet PDF includes multiple part numbers: TD62082APG, TD62083AFG. Please refer to the document for exact specifications by model.

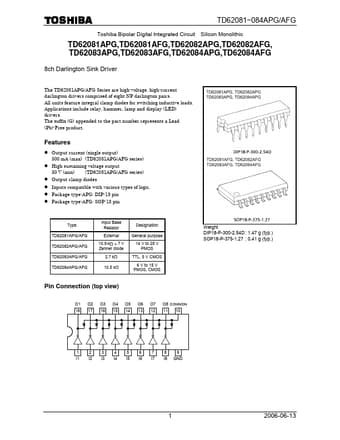

Additional preview pages of the TD62082APG datasheet.

Output current (single output) 500 mA (max) (TD62081APG/AFG series) High sustaining voltage output 50 V (min) (TD62081APG/AFG series) Output clamp diodes Inputs compatible with various types of logic. Package type-APG: DIP-18 pin Package type-AFG: SOP-18 pin Type TD62081APG/AFG TD62082APG/AFG TD62083APG/AFG TD62084APG/AFG Input Base Resistor External 10.5-kΩ + 7 V Zenner diode 2.7 kΩ 10.5 kΩ Designation General purpose 14 V to 25 V PMOS TTL, 5 V CMOS 6 V to 15 V PMOS, CMOS Weight DIP18-P-300.
