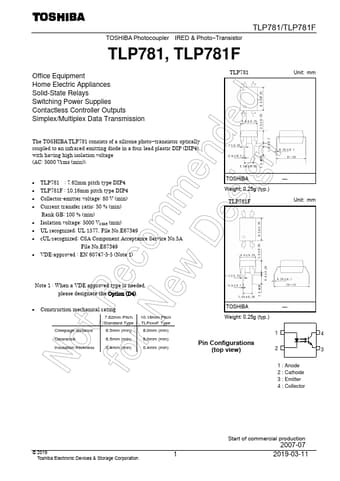

TOSHIBA Photocoupler IRED & Photo−Transistor
TLP781, TLP781F
TLP781/TLP781F
Office Equipment Home Electric Appliances Solid-State Relays Switching Power Supplies Contactless Controller Outputs Simplex/Multiplex Data Transmission
TLP781
Unit: mm
The TOSHIBA TLP781 consists of a silicone photo−transistor optically coupled to an infrared emitting diode in a four lead plastic DIP (DIP4) with having high isolation voltage (AC: 5000 Vrms (min)).
TLP781 : 7.62mm pitch type DIP4 TLP781F : 10.16mm pitch type DIP4 Collector-emitter voltage: 80 V (min) Current transfer ratio: 50 % (min)
Rank GB: 100 % (min) Isolation voltage: 5000 Vrms (min) UL recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A
File No.
TLP781 Datasheet
