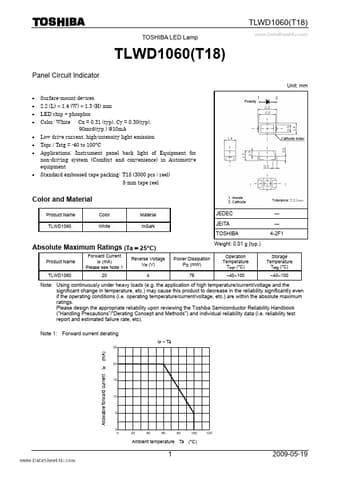

TLWD1060(T18)
TOSHIBA LED Lamp
www.DataSheet4U.com
TLWD1060(T18)
Panel Circuit Indicator
Unit: mm • • • • • • • Surface-mount devices 2.2 (L) × 1.4 (W) × 1.3 (H) mm LED chip + phosphor Color: White Cx = 0.31 (typ), Cy = 0.30(typ), 90mcd(typ.) @10mA
Low drive current, high-intensity light emission Topr / Tstg = -40 to 100°C Applications: Instrument panel back light of Equipment for non-driving system (Comfort and convenience) in Automotive equipment Standard embossed tape packing: T18 (3000 pcs / reel) 8-mm tape reel
•
Color and Material
Product Name TLWD1060 Color White Material InGaN
JEDEC JEITA TOSHIBA
― ― 4-2F1
Absolute Maximum Ratings (Ta = 25°C)
Product Name TLWD1060 Forward Current IF (mA) Please see Note 1 20 Reverse Voltage VR (V) 4 Power Dissipation PD (mW) 76
Weight: 0.
