TPS622 Datasheet - Toshiba Semiconductor

TPS622 - Silicon NPN Transistor

TOSHIBA Phototransistor Silicon NPN Epitaxial Planar TPS622(F) Opto-electronic Switch Optical Mouse Optical Touch Switch Compact side view epoxy resin package High response speed: tr, tf = 6μs (typ.) Half value angle: θ1/2 = ±15° (typ.) Visible light cut type (black package) Optimum in combination with infrared LED TLN117(F) with identical external dimensions.

TPS622(F) Unit in : mm Absolute Maximum Ratings (Ta = 25°C) Characteristic Symbol

TPS622_ToshibaSemiconductor.pdf

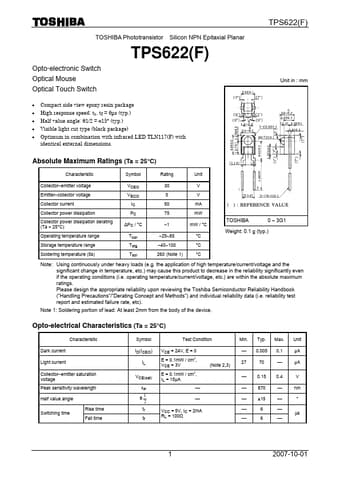

Preview of TPS622 PDF
TPS622 Datasheet Preview Page 2 TPS622 Datasheet Preview Page 3

Datasheet Details

Part number:

TPS622

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

175.79 KB

Description:

Silicon npn transistor.
