TPS62202

High-Efficiency SOT23 Step-Down DC-DC Converter

TPS62202 Features

* 1 High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency

* 2.5-V to 6-V Input Voltage Range

* Adjustable Output Voltage Range From 0.7 V to VI

* Fixed Output Voltage Options Available

* Up to 300-mA Output Current

* 1-MHz Fixed-Freq

TPS62202 General Description

The TPS6220x devices are a family of high-efficiency synchronous step-down converters ideally suited for portable systems powered by 1-cell Li-Ion or 3-cell NiMH/NiCd batteries. The devices are also suitable to operate from a standard 3.3-V or 5-V voltage rail. With an output voltage range of 6 V do.

TPS62202 Datasheet (1.23 MB)

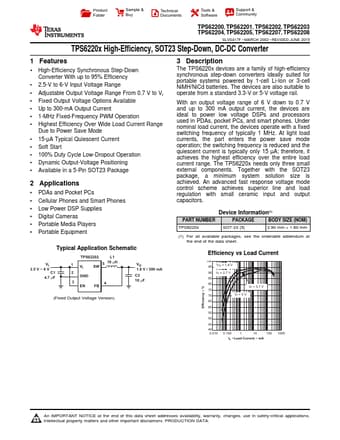

Preview of TPS62202 PDF

Datasheet Details

Part number:

TPS62202

Manufacturer:

Texas Instruments ↗

File Size:

1.23 MB

Description:

High-efficiency sot23 step-down dc-dc converter.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS62200, TPS62201, TPS62202, TPS62203 TPS62204, TPS62205, T.
