02CZ5.6, 02CZ2.0 Datasheet - Toshiba

02CZ5.6, 02CZ2.0, Zenzer Diode

02CZ2.0~02CZ47 TOSHIBA Zenzer Diode Silicon Epitaxial Planar Type 02CZ2.0~02CZ47 Constant Voltage Regulation Applications Reference Voltage Applicati.

02CZ2.0-Toshiba.pdf

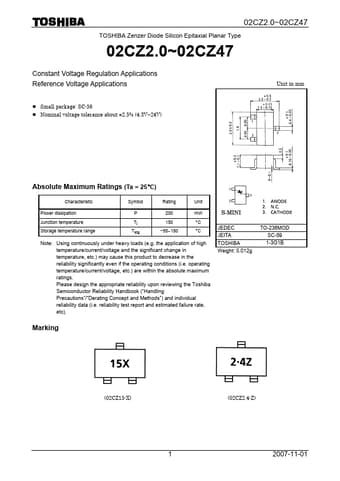

02CZ5.6 Datasheet Preview — This datasheet PDF includes multiple part numbers: 02CZ5.6, 02CZ2.0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

02CZ5.6, 02CZ2.0

Manufacturer:

Toshiba ↗

File Size:

395.48 KB

Description:

Zenzer Diode

Note:

This datasheet PDF includes multiple part numbers: 02CZ5.6, 02CZ2.0.
Please refer to the document for exact specifications by model.

Applications

* Reference Voltage Applications Unit in mm z Small package: SC-59 z Nominal voltage tolerance about ±2.5% (4.3V~24V) Absolute Maximum Ratings (Ta = 25°C) Characteristic Symbol Rating Unit Power dissipation Junction temperature Storage temperature range P 200 mW Tj 150 °C Tstg
* 55∼
