* High 1 y f s 1 : iyf s l=40mS(Typ.) (VDS =10V, V G s=0, lDSS=5mA)
* Excellent Pair Characteristics : |VGS1 -VGS2|= 20mV (Max.) (VDS =10V, I D=5mA)
* High Breakdown Voltage : VGr)g=-40V
* Low Noise : NF=1.0dB (Typ.) (VDS =10V, I D=5mA, Rg=100n, f=lkHz)
* High
2SK146
164.45 KB
Silicon n-channel transistor.
:

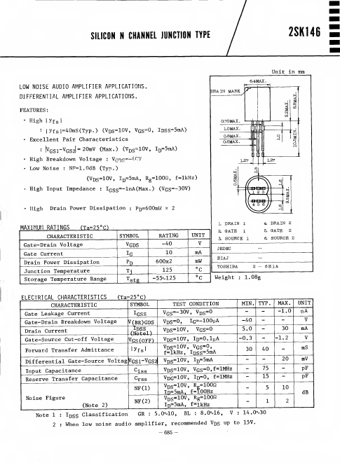

SILICON N CHANNEL JUNCTION TYPE
2SK146
LOW NOISE AUDIO AMPLIFIER APPLICATIONS. DIFFERENTIAL AMPLIFIER APPLICATIONS.
DRAIN MARK
Unit in mm
6.4MA.
