C5201 - 2SC5201

C5201 Description

TOSHIBA Transistor Silicon NPN Triple Diffused Mesa Type 2SC5201 High-Voltage Switching Applications 2SC5201 Unit: mm * High breakdown volta.

C5201 Applications

* 2SC5201 Unit: mm
* High breakdown voltage: VCEO = 600 V
* Low saturation voltage: VCE (sat) = 1.0 V (max) (IC = 20 mA, IB = 0.5 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage

📥 Download Datasheet

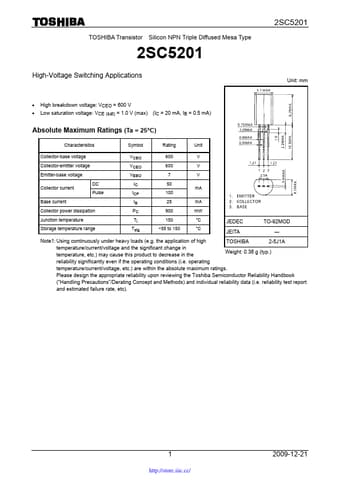

Preview of C5201 PDF
