D1631 Silicon NPN Transistor

Toshiba

D1631 Description

2SD1631 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) (Darlington power transistor) 2SD1631 Micro Motor Drive, Hammer Drive Application.

D1631 Applications

* Switching Applications Power Amplifier Applications Unit: mm
* High DC current gain: hFE = 4000 (min) (VCE = 2 V, IC = 150 mA)
* Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 1 A, IB = 1 mA) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter volt

📥 Download Datasheet

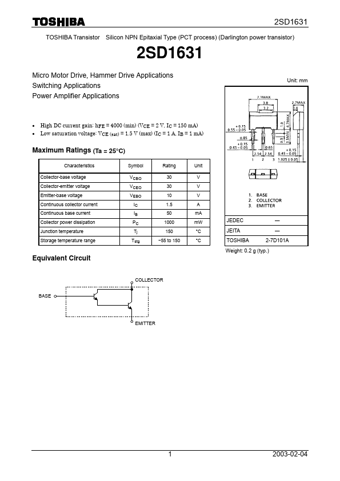

D1631 Datasheet Preview — Preview of D1631 PDF

Datasheet Details

Part number: D1631
Manufacturer: Toshiba ↗
File Size: 116.58 KB
Datasheet: D1631-Toshiba.pdf
Description: Silicon NPN Transistor
