DCL540D01, DCL540C01, HIGH SPEED QUAD CHANNEL DIGITAL ISOLATORS

HIGH SPEED QUAD CHANNEL DIGITAL ISOLATORS DCL540x01,DCL541x01 DCL540x01,DCL541x01 DCL540C01/DCL540D01/DCL540L01/DCL540H01/DCL541A01/DCL541B01 1.Ap.
DCL540C01/DCL540D01/DCL540L01/DCL540H01/DCL541A01/DCL541B01 are high-speed quad-channel digital isolators.

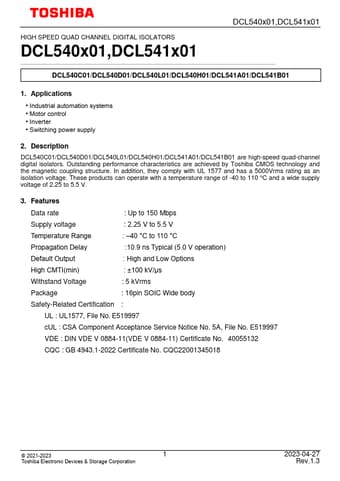

datasheet Preview Page 1 from Datasheet4u.com

DCL540C01-Toshiba.pdf

DCL540D01 Datasheet Preview — This datasheet PDF includes multiple part numbers: DCL540D01, DCL540C01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DCL540D01, DCL540C01

Manufacturer:

Toshiba ↗

File Size:

0.99 MB

Description:

HIGH SPEED QUAD CHANNEL DIGITAL ISOLATORS

Note:

This datasheet PDF includes multiple part numbers: DCL540D01, DCL540C01.
Please refer to the document for exact specifications by model.

Features

* Data rate : Up to 150 Mbps Supply voltage : 2.25 V to 5.5 V Temperature Range :
* 40 °C to 110 °C Propagation Delay :10.9 ns Typical (5.0 V operation) Default Output : High and Low Options High CMTI(min) : ±100 kV/μs Withstand Voltage : 5 kVrms Package : 16pin SOIC Wide body

Applications

* Industrial automation systems
* Motor control
* Inverter
