DCL540L01, DCL540C01 Datasheet - Toshiba

DCL540L01 HIGH SPEED QUAD CHANNEL DIGITAL ISOLATORS

DCL540C01/DCL540D01/DCL540L01/DCL540H01/DCL541A01/DCL541B01 are high-speed quad-channel digital isolators. Outstanding performance characteristics are achieved by Toshiba CMOS technology and the magnetic coupling structure. In addition, they comply with UL 1577 and has a 5000Vrms rating as an isolat.

DCL540L01 Features

* Data rate : Up to 150 Mbps Supply voltage : 2.25 V to 5.5 V Temperature Range :

* 40 °C to 110 °C Propagation Delay :10.9 ns Typical (5.0 V operation) Default Output : High and Low Options High CMTI(min) : ±100 kV/μs Withstand Voltage : 5 kVrms Package : 16pin SOIC Wide body

DCL540C01-Toshiba.pdf

This datasheet PDF includes multiple part numbers: DCL540L01, DCL540C01. Please refer to the document for exact specifications by model.

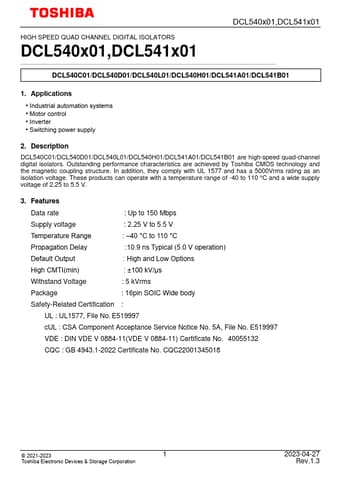

DCL540L01 Datasheet Preview Page 2 DCL540L01 Datasheet Preview Page 3

Datasheet Details

Part number:

DCL540L01, DCL540C01

Manufacturer:

Toshiba ↗

File Size:

0.99 MB

Description:

High speed quad channel digital isolators.

Note:

This datasheet PDF includes multiple part numbers: DCL540L01, DCL540C01.
Please refer to the document for exact specifications by model.
