DF2S23P2CTC - ESD Protection Diodes

Toshiba

📥 Download Datasheet

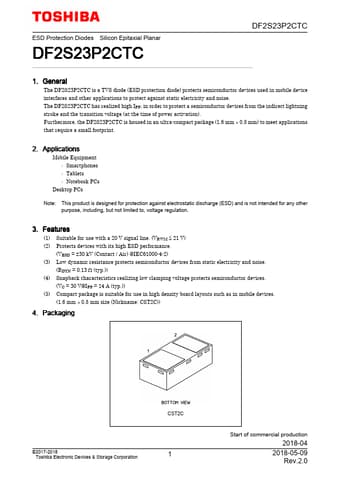

DF2S23P2CTC Datasheet Preview — Preview of DF2S23P2CTC PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DF2S23P2CTC
Manufacturer	Toshiba ↗
File Size	351.33 KB
Description	ESD Protection Diodes
Datasheet	DF2S23P2CTC-Toshiba.pdf

DF2S23P2CTC Product details

Features

(1) Suitable for use with a 20 V signal line. (VRWM ≤ 21 V) (2) Protects devices with its high ESD performance. (VESD = ±30 kV (Contact / Air) @IEC61000-4-2) (3) Low dynamic resistance protects semiconductor devices from static electricity and noise. (RDYN = 0.13 Ω (typ. )) (4) Snapback characteristics realizing low clamping voltage protects semiconductor devices. (VC = 30 V@IPP = 14 A (typ. )) (5) Compact package is suitable for use in high density board layouts such as in mobile devices. (1.6 mm.
