MG600J2YS60A - TOSHIBA IGBT Module Silicon N Channel IGBT

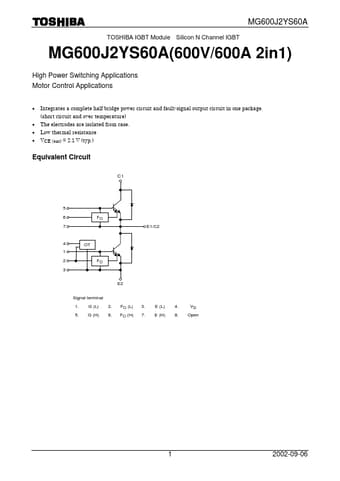

MG600J2YS60A TOSHIBA IGBT Module Silicon N Channel IGBT MG600J2YS60A(600V/600A 2in1) High Power Switching Applications Motor Control Applications Integrates a complete half bridge power circuit and fault-signal output circuit in one package.

(short circuit and over temperature) The electrodes are isolated from case.

Low thermal resistance VCE (sat) = 2.1 V (typ.) Equivalent Circuit C1 5 6 7 FO E1/C2 4 1 2 3 OT FO E2 Signal terminal 1.

5.

G (L) G (H) 2.

6.

FO (L) FO
