RN1101 - Silicon NPN Epitaxial Type Transistors

Product Overview

Toshiba

Part number	RN1101
Manufacturer	Toshiba
File Size	879.54 KB
Description	Silicon NPN Epitaxial Type Transistors
Datasheet	RN1101 Datasheet

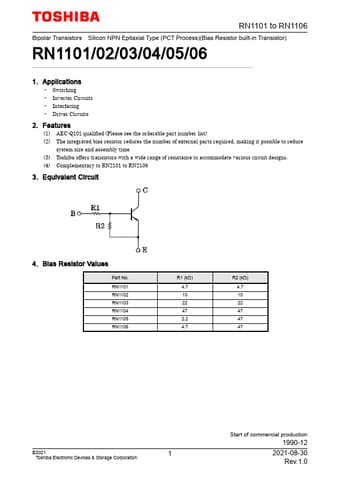

Additional preview pages of the RN1101 datasheet.

(1) AEC-Q101 qualified (Please see the orderable part number list) (2) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. (3) Toshiba offers transistors with a wide range of resistance to accommodate various circuit designs. (4) Complementary to RN2101 to RN2106 3. Equivalent Circuit 4. Bias Resistor Values Part No. RN1101 RN1102 RN1103 RN1104 RN1105 RN1106 R1 (kΩ) 4.7 10 22 47 2.2 4.7 R2 (kΩ) 4.7 10 22 47 47.
