RN1103MFV, RN1101MFV, Silicon NPN Transistor

RN1101MFV to RN1106MFV Bipolar Transistors Silicon NPN Epitaxial Type (PCT Process)(Bias Resistor built-in Transistor) RN1101MFV/02MFV/03MFV/04MFV/05M.

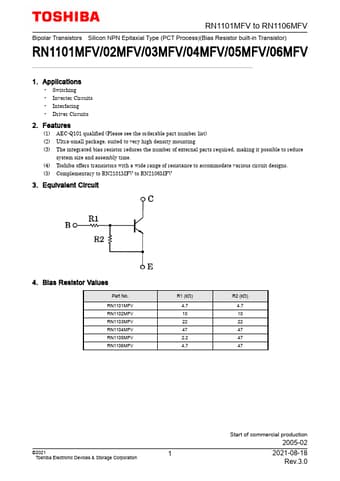

datasheet Preview Page 1 from Datasheet4u.com

RN1101MFV-Toshiba.pdf

RN1103MFV Datasheet Preview — This datasheet PDF includes multiple part numbers: RN1103MFV, RN1101MFV. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RN1103MFV, RN1101MFV

Manufacturer:

Toshiba ↗

File Size:

782.91 KB

Description:

Silicon NPN Transistor

Note:

This datasheet PDF includes multiple part numbers: RN1103MFV, RN1101MFV.
Please refer to the document for exact specifications by model.

Features

* (1) AEC-Q101 qualified (Please see the orderable part number list) (2) Ultra-small package, suited to very high density mounting (3) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. (4) Toshiba offers transistors

Applications

* Switching
* Inverter Circuits
* Interfacing
