RN1112 - Silicon NPN Epitaxial Type Transistors

Datasheet Summary

Features

  • (1) AEC-Q101 qualified (Please see the orderable part number list) (2) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. (3) Toshiba offers transistors with a wide range of resistance to accommodate various circuit designs. (4) Complementary to RN2112,RN2113 3. Equivalent Circuit 4. Packaging and Pin Assignment SSM 1: Base 2: Emitter 3: Collector ©2021 1 Toshiba Electronic Devices & Storage Corporation S.

📥 Download Datasheet

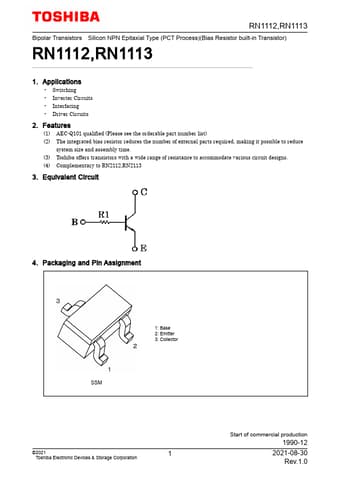

Datasheet preview – RN1112

Datasheet Details

Part number RN1112
Manufacturer Toshiba
File Size 383.33 KB
Description Silicon NPN Epitaxial Type Transistors
Datasheet download datasheet RN1112 Datasheet
