S-AV7 VHF HAM FM RF POWER AMPLIFIER

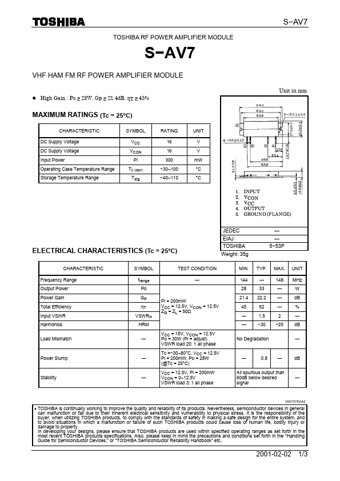

TOSHIBA RF POWER AMPLIFIER MODULE S AV7 VHF HAM FM RF POWER AMPLIFIER MODULE l High Gain : Po ≥ 28W, GP ≥ 21.4dB, ηT ≥ 45% MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC DC Supply Voltage DC Supply Voltage Input Power Operating Case Temperature Range Storage Temperature Range SYMBOL VCC VCON Pi Tc (opr) Tstg RATING 16 16 300 30~100 40~110 UNIT V V mW °C °C S AV7 Unit in mm ELECTRICAL CHARACTERISTICS (Tc = 25°C) JEDEC EIAJ TOSHIBA Weight: 35g .
