TA1310BN BUILT-IN VIDEO / CHROMA AND SYNC SIGNAL PROCESSOR AND DEFLECTION CORRECTION IC

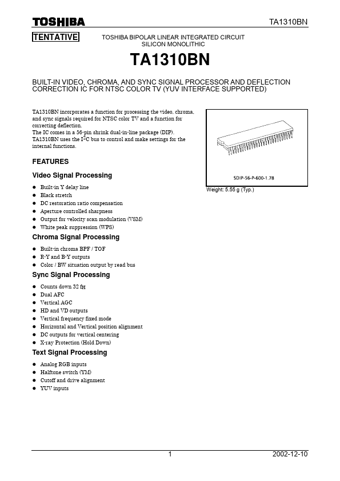

TENTATIVE TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC TA1310BN TA1310BN BUILT-IN VIDEO, CHROMA, AND SYNC SIGNAL PROCESSOR AND DEFLECTION CORRECTION IC FOR NTSC COLOR TV (YUV INTERFACE SUPPORTED) TA1310BN incorporates a function for processing the video, chroma, and sync signals required for NTSC color TV and a function for correcting deflection. The IC comes in a 56-pin shrink dual-in-line package (DIP). TA1310BN uses the I2C bus to control and make settings for the internal.

TA1310BN Features

* Video Signal Processing l Built-in Y delay line l Black stretch l DC restoration ratio compensation l Aperture controlled sharpness l Output for velocity scan modulation (VSM) l White peak suppression (WPS) Chroma Signal Processing l Built-in chroma BPF / TOF l R-Y and B-Y outputs l Color / BW situa
