TA7368P - AUDIO POWER AMPLIFIER

Product Overview

Toshiba

Part number	TA7368P
Manufacturer	Toshiba
File Size	374.02 KB
Description	AUDIO POWER AMPLIFIER
Datasheet	TA7368P Datasheet
Note	This datasheet PDF includes multiple part numbers: TA7368P, TA7368. Please refer to the document for exact specifications by model.

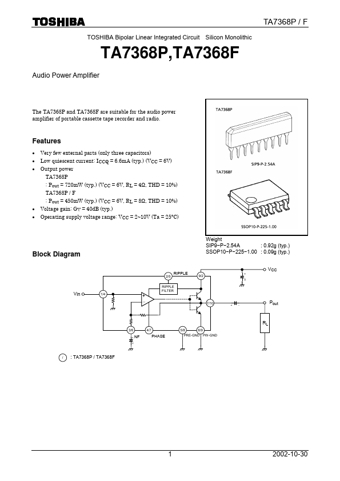

Additional preview pages of the TA7368P datasheet.

Very few external parts (only three capacitors).
Low quiescent current: ICCQ = 6.6mA (typ. ) (VCC = 6V).
Output power TA7368P : Pout = 720mW (typ. ) (VCC = 6V, RL = 4Ω, THD = 10%) TA7368P / F : Pout = 450mW (typ. ) (VCC = 6V, RL = 8Ω, THD = 10%).
Voltage gain: GV = 40dB (typ. ).
Operating supply voltage range: VCC = 2~10V (Ta = 25°C) Block Diagram Vin 1/4 Weight SIP9.
P.
2.54A : 0.92g (typ. ) SSOP10.
P.
225.
1.00 : 0.09g (typ. ) RIPPLE.
