TA8229K - LOW FREQUENCY POWER AMPLIFIER

Datasheet Summary

Features

  • High power : Pout (1) = 2.5 W (typ. ) (VCC = 9 V, RL = 4 Ω, f = 1 kHz, THD = 10%) Pout (2) = 4.6 W (typ. ) (VCC = 12 V, RL = 3 Ω, f = 1 kHz, THD = 10%).
  • Low popping noise at power ON.
  • Small quiescent current : ICCQ = 21 mA (typ. ) (VCC = 15 V, Vin = 0).
  • Soft clip.
  • Built-in thermal shut down protection circuit.
  • Best for supply voltage 9 V, 12 V.
  • Operation supply voltage range: VCC (opr) = 6~15 V (Ta = 25°C) Weight: 3.9 g (typ. ) TA8229K 1 2002-03-05 Block Diagr.

📥 Download Datasheet

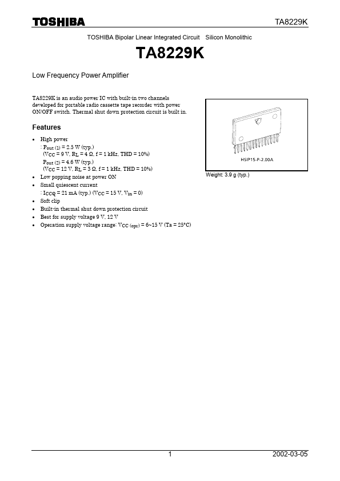

Datasheet preview – TA8229K
