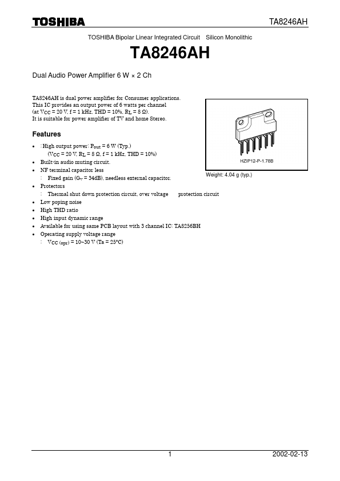

TA8246AH Datasheet, 2ch, Toshiba

TA8246AH Features

• 2ch
• : High output power: Pout = 6 W (Typ.) (VCC = 20 V, RL = 8 Ω, f = 1 kHz, THD = 10%)
• Built-in audio muting circuit.
• NF terminal capacitor less : Fixed g

PDF File Details

Part number:

TA8246AH

Manufacturer:

Toshiba ↗

File Size:

188.73kb

Download:

📄 Datasheet

Description:

Dual audio power amplifier 6w x 2ch.

TA8246AH Application

• Applications This IC provides an output power of 6 watts per channel (at VCC = 20 V, f = 1 kHz, THD = 10%, RL = 8 Ω). It is suitable for power ampl
