TA8248K - LOW FREQUENCY POWER AMPLIFIER

Datasheet Summary

Features

  • High Power : Pout (1) = 2.5 W (typ. ) (VCC = 9 V, RL = 4Ω, f = 1 kHz, THD = 10%) : Pout (2) = 4.6 W (typ. ) (VCC = 12 V, RL = 4Ω, f = 1 kHz, THD = 10%).
  • Low Popping Noise at Power ON Small Quiescent Current : ICCQ = 21 mA (typ. ) (VCC = 15 V, Vin = 0) Soft Clip Built-in Thermal Shut Down Protection Circuit Best for Supply Voltage 9 V, 12 V Operation Supply Voltage Range : VCC (opr) = 6~15 V (Ta = 25°C) Weight: 3.9 g (typ. ) 1 2002-04-05 TA8248K Block Diagr.

📥 Download Datasheet

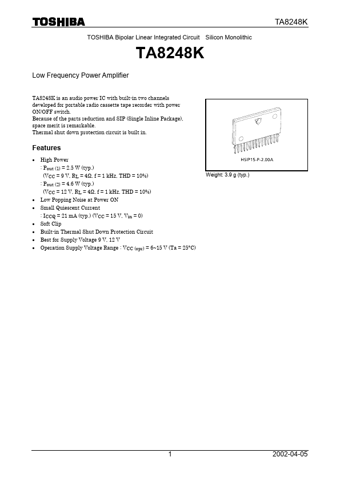

Datasheet preview – TA8248K

Datasheet Details

Part number TA8248K
Manufacturer Toshiba
File Size 324.01 KB
Description LOW FREQUENCY POWER AMPLIFIER
Datasheet download datasheet TA8248K Datasheet
Additional preview pages of the TA8248K datasheet.

📁 Similar Datasheet

  • TA8246AHQ - Dual Audio Power Amplifier (Toshiba Semiconductor)
  • TA8200AH - DUAL AUDIO POWER AMPLIFIER (Toshiba Semiconductor)
  • TA8201AK - BTL AUDIO POWER AMPLIFIER (Toshiba Semiconductor)
  • TA8205AH - 18W BTL x 2CH AUDIO POWER AMPLIFIER (Toshiba Semiconductor)
  • TA8205AL - 18W BTL x 2CH AUDIO POWER AMPLIFIER (Toshiba Semiconductor)
  • TA8207K - TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic (Toshiba Semiconductor)
  • TA8207K - LOW FREQUENCY POWER AMPLIFIER (UTC)
  • TA8208H - 5.8W DUAL AUDIO POWER AMPLIFIER (Toshiba Semiconductor)
  • TA8210AHQ - 20W BTL X 2ch Audio Power Amplifier (Toshiba Semiconductor)
  • TA8210ALQ - 20W BTL X 2ch Audio Power Amplifier (Toshiba Semiconductor)
Other Datasheets by Toshiba
  • TA8244H - Multi Output Voltage Regulator
  • TA8246AH - DUAL AUDIO POWER AMPLIFIER 6W x 2CH
  • TA8246H - DUAL AUDIO POWER AMPLIFIER 6W x 2CH
  • TA8210AH - 20W BTL x 2CH AUDIO POWER AMPLIFIER
  • TA8210AL - 20W BTL x 2CH AUDIO POWER AMPLIFIER
  • TA8211AH - DUAL AUDIO POWER AMPLIFIER
  • TA8212F - 4CH POWER DRIVER
  • TA8213K - AUDIO POWER AMPLIFIER

Full PDF Text Transcription

Click to expand full text
TA8248K TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8248K Low Frequency Power Amplifier TA8248K is an audio power IC with built-in two channels developed for portable radio cassette tape recorder with power ON/OFF switch. Because of the parts reduction and SIP (Single Inline Package), space merit is remarkable. Thermal shut down protection circuit is built in. Features · High Power : Pout (1) = 2.5 W (typ.) (VCC = 9 V, RL = 4Ω, f = 1 kHz, THD = 10%) : Pout (2) = 4.6 W (typ.) (VCC = 12 V, RL = 4Ω, f = 1 kHz, THD = 10%) · · · · · · Low Popping Noise at Power ON Small Quiescent Current : ICCQ = 21 mA (typ.
