TA8445K, POWER AMPLIFIER FOR DRIVING A DEFLECTION CIRCUIT OF A COLOR TELEVISION

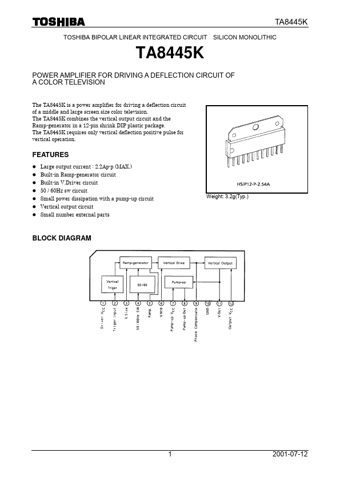

TA8445K TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC TA8445K POWER AMPLIFIER FOR DRIVING A DEFLECTION CIRCUIT OF A COLOR TELEVISION T.

datasheet Preview Page 1 from Datasheet4u.com

TA8445K_Toshiba.pdf

TA8445K Datasheet Preview — Preview of TA8445K PDF

Datasheet Details

Part number:

TA8445K

Manufacturer:

Toshiba ↗

File Size:

134.85 KB

Description:

POWER AMPLIFIER FOR DRIVING A DEFLECTION CIRCUIT OF A COLOR TELEVISION

Features

* l Large output current : 2.2Ap-p (MAX. ) l Built-in Ramp-generator circuit l Built-in V. Driver circuit l 50 / 60Hz sw circuit l Small power dissipation with a pump-up circuit l Vertical output circuit l Small number external parts Weight: 3.2g(Typ. ) BLOCK DIAGRAM 1 2001-07-12 TERMINAL INTERFACE
