TB67H482FNG - BiCD Constant Current Single H-bridge Driver

Toshiba

📥 Download Datasheet

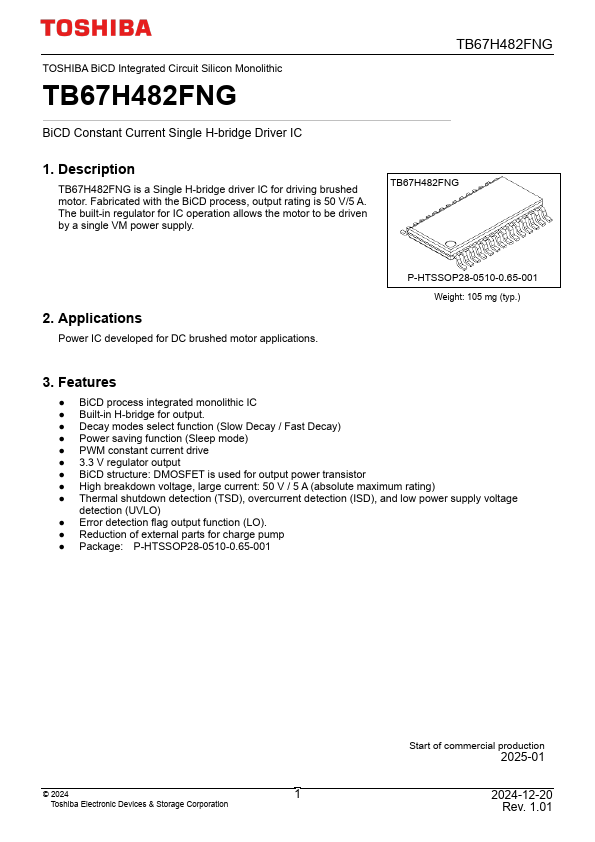

TB67H482FNG Datasheet Preview — Preview of TB67H482FNG PDF

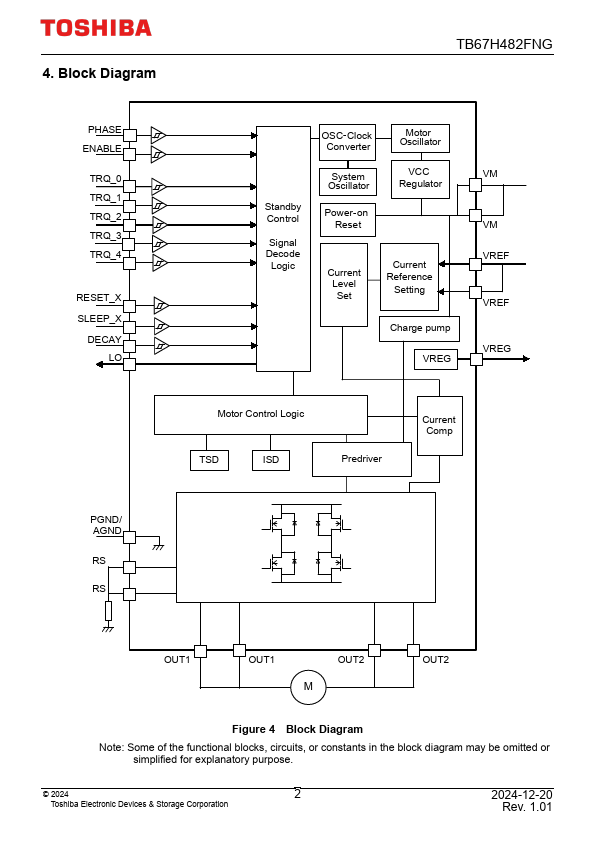

datasheet Preview Page 2

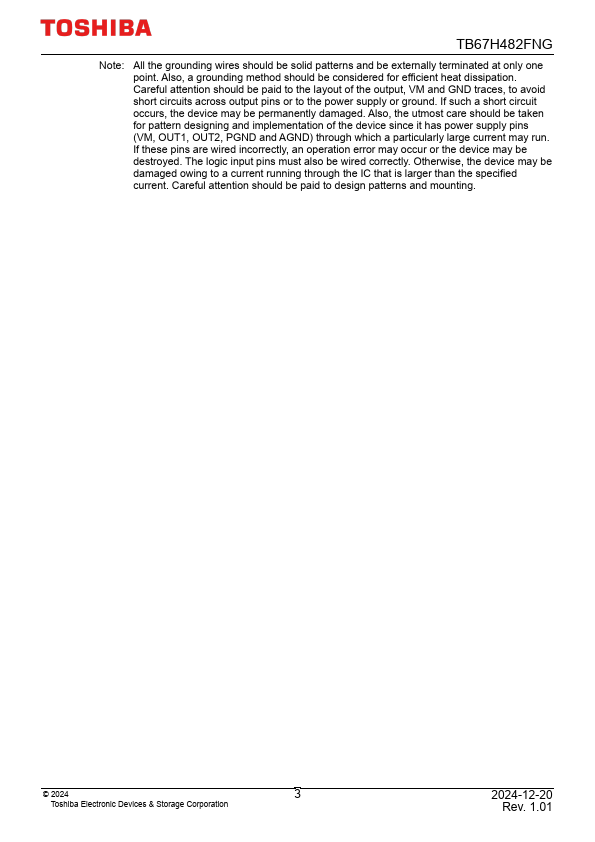

datasheet Preview Page 3

Datasheet Details

Part number	TB67H482FNG
Manufacturer	Toshiba ↗
File Size	466.95 KB
Description	BiCD Constant Current Single H-bridge Driver
Datasheet	TB67H482FNG-Toshiba.pdf

TB67H482FNG Product details

Description

TB67H482FNG is a Single H-bridge driver IC for driving brushed motor.

Features

BiCD process integrated monolithic IC.
Built-in H-bridge for output.
Decay modes select function (Slow Decay / Fast Decay).
Power saving function (Sleep mode).
PWM constant current drive.
3.3 V regulator output.
BiCD structure:.
