TB9101FNG Datasheet - Toshiba

TB9101FNG 2ch H-Bridge driver

TB9101FNG (1) Motor control TB9101FNG build-in 2 H-Bridge. These 2 H-Bridge is controlled by Input DI1A/DI1B DI2A/DI2B, independently. The operation modes are as follows. *Motor Operation 1 Input DI1A / DI2A DI1B / DI2B H H H L L H L L Output M +1 / M+2 M -1 / M-2 L L H L L.
TOSHIBA Bi-CMOS Linear Integrated Circuit Silicon Monolithic TB9101FNG TB9101FNG 2ch H-Bridge driver for DC Brushed Motor TB9101FNG is a 2ch H-bridge driver which is designed specifically for Automotive. This IC has built-in for directly driving small DC Brushed motor. Forward/Reverse/Stop/Brake can be set by Input signal (DI1A,DI1B,DI2A,DI2B). These Inputs are TTL, thus, TB9101FNG can be controlled by external MCU, directory. Standby mode, Miscellaneous Abnormal Detection are built-in. TB9101.

TB9101FNG Datasheet (606.61 KB)

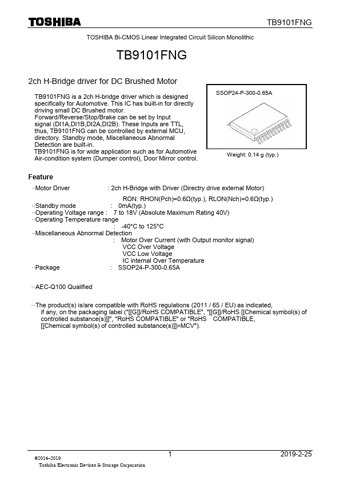

Preview of TB9101FNG PDF

Datasheet Details

Part number:

TB9101FNG

Manufacturer:

Toshiba ↗

File Size:

606.61 KB

Description:

2ch h-bridge driver.
