TBD62084AFG, TBD62083APG, 8channel sink type DMOS transistor array

TBD62083A series, TBD62084A series TOSHIBA BiCD Integrated Circuit Silicon Monolithic TBD62083APG, TBD62083AFG, TBD62083AFNG, TBD62083AFWG TBD62084APG.

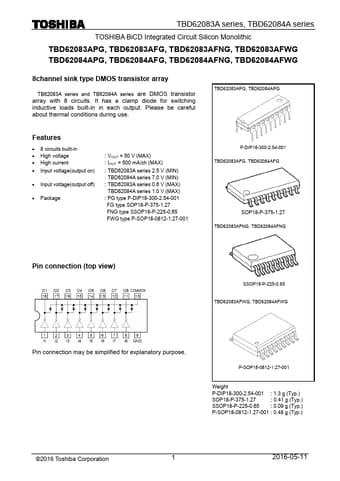

datasheet Preview Page 1 from Datasheet4u.com

TBD62083APG-Toshiba.pdf

TBD62084AFG Datasheet Preview — This datasheet PDF includes multiple part numbers: TBD62084AFG, TBD62083APG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TBD62084AFG, TBD62083APG

Manufacturer:

Toshiba ↗

File Size:

454.70 KB

Description:

8channel sink type DMOS transistor array

Note:

This datasheet PDF includes multiple part numbers: TBD62084AFG, TBD62083APG.
Please refer to the document for exact specifications by model.

Features

* 8 circuits built-in
* High voltage
* High current
* Input voltage(output on)
* Input voltage(output off)
* Package : VOUT = 50 V (MAX) : IOUT = 500 mA/ch (MAX) : TBD62083A series 2.5 V (MIN) TBD62084A series 7.0 V (MIN) : TBD62083A series 0.6 V (MAX
