TC4013BFN, TC4013 Datasheet - Toshiba

TC4013BFN DUAL D-TYPE FLIP-FLOP

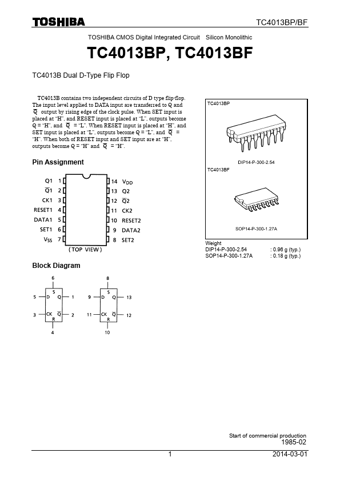

TC4013BP/BF/BFN TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC4013BP,TC4013BF,TC4013BFN TC4013B Dual D-Type Flip Flop TC4013B contains two independent circuits of D type flip-flop. The input level applied to DATA input are transferred to Q and Q output by rising edge of the clock pulse. When SET input is placed at “H”, and RESET input is placed at “L”, outputs become Q = “H”, and Q = “L”. When RESET input is placed at “H”, and SET input is placed at “L”, outputs become Q = “L”, a.

TC4013_Toshiba.pdf

This datasheet PDF includes multiple part numbers: TC4013BFN, TC4013. Please refer to the document for exact specifications by model.
TC4013BFN Datasheet Preview Page 2 TC4013BFN Datasheet Preview Page 3

Datasheet Details

Part number:

TC4013BFN, TC4013

Manufacturer:

Toshiba ↗

File Size:

219.33 KB

Description:

Dual d-type flip-flop.

Note:

This datasheet PDF includes multiple part numbers: TC4013BFN, TC4013.
Please refer to the document for exact specifications by model.
