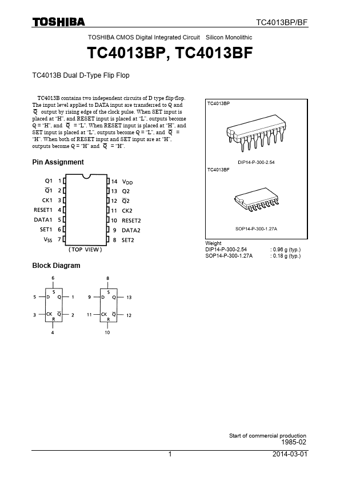

TC4013BP/BF
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC4013BP, TC4013BF
TC4013B Dual D-Type Flip Flop
TC4013B contains two independent circuits of D type flip-flop. The input level applied to DATA input are transferred to Q and Q output by rising edge of the clock pulse. When SET input is placed at “H”, and RESET input is placed at “L”, outputs become Q = “H”, and Q = “L”. When RESET input is placed at “H”, and SET input is placed at “L”, outputs become Q = “L”, and Q = “H”. When both of RESET input and SET input are at “H”, outputs become Q = “H” and Q = “H”.
Pin Assignment
TC4013BP TC4013BF
Block Diagram
Weight DIP14-P-300-2.54 SOP14-P-300-1.27A
: 0.96 g (typ.) : 0.18 g (typ.
