THGBMBG5D1KBAIL - 4GB density e-MMC

Product Overview

Toshiba

Part number	THGBMBG5D1KBAIL
Manufacturer	Toshiba
File Size	1.02 MB
Description	4GB density e-MMC
Datasheet	THGBMBG5D1KBAIL Datasheet

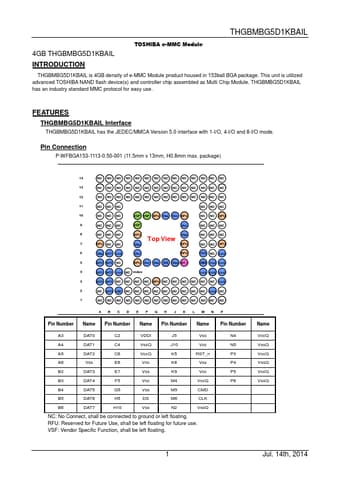

Additional preview pages of the THGBMBG5D1KBAIL datasheet.

THGBMBG5D1KBAIL Interface THGBMBG5D1KBAIL has the JEDEC/MMCA Version 5.0 interface with 1-I/O, 4-I/O and 8-I/O mode. Pin Connection P-WFBGA153-1113-0.50-001 (11.5mm x 13mm, H0.8mm max. package) 14 NC NC NC NC NC NC NC NC NC NC NC NC NC NC 13 NC NC NC NC NC NC NC NC NC NC NC NC NC NC 12 NC NC NC NC NC NC NC NC NC NC NC NC NC NC 11 NC NC NC NC NC NC 10 NC NC NC VSF VSF RFU Vss Vcc RFU NC NC RFU 9 NC NC NC VSF Vcc NC NC NC 8 NC NC NC RFU Vss NC NC NC Top View 7 RFU NC NC Vss RFU.
