THGBMDG5D1LBAIL - e-MMC Module

Product Overview

Toshiba

Part number	THGBMDG5D1LBAIL
Manufacturer	Toshiba
File Size	1.16 MB
Description	e-MMC Module
Datasheet	THGBMDG5D1LBAIL Datasheet
Additional preview pages of the THGBMDG5D1LBAIL datasheet.

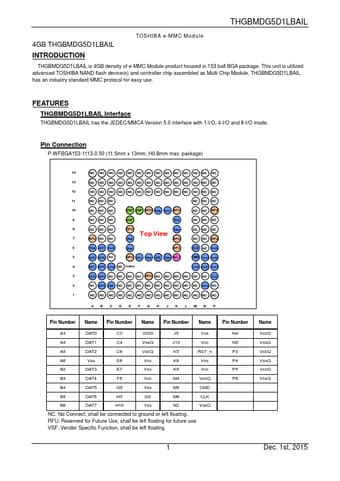

THGBMDG5D1LBAIL Interface THGBMDG5D1LBAIL has the JEDEC/MMCA Version 5.0 interface with 1-I/O, 4-I/O and 8-I/O mode. Pin Connection P-WFBGA153-1113-0.50 (11.5mm x 13mm, H0.8mm max. package) 14 NC NC NC NC NC NC NC NC NC NC NC NC NC NC 13 NC NC NC NC NC NC NC NC NC NC NC NC NC NC 12 NC NC NC NC NC NC NC NC NC NC NC NC NC NC 11 NC NC NC NC NC NC 10 NC NC NC VSF VSF RFU Vss Vcc RFU NC NC RFU 9 NC NC NC VSF Vcc NC NC NC 8 NC NC NC RFU Vss NC NC NC Top View 7 RFU NC NC Vss RFU N.
