TMP8035P, TMP8048P - 8-BIT SINGLE-CHIP MICROCOMPUTER

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TMP8035P, TMP8048P. Please refer to the document for exact specifications by model.

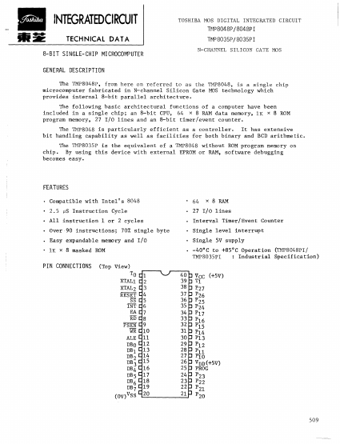

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TMP8035P, TMP8048P
Manufacturer Toshiba ↗
File Size 1.43 MB
Description 8-BIT SINGLE-CHIP MICROCOMPUTER
Datasheet download datasheet TMP8048P-Toshiba.pdf
Note This datasheet PDF includes multiple part numbers: TMP8035P, TMP8048P.
Please refer to the document for exact specifications by model.

TMP8035P Product details

Description

H1P 8048P / 8048P I H1P8035P/8035PI VSS (Power Supply) Circuit GND potential VDD (Power Supply) +SV during operation Low power standby pin for TMP8048 RAM VCC (Main Power Supply) +SV during operation PROG (Output) Output strobe for the TMP8243P I/O expander PlO-Pl7 (Input/Output) Port 1 8-bit quasi-bidirectional port (Internal Pullup -;; SOKll ).P20-P 27 (Input/Output) Port 2 8-bit quasi-bidirectional port (Internal Pullup:; SOKll ).P20- P23 Contain the four high order pn)gram counter bits d

Features
