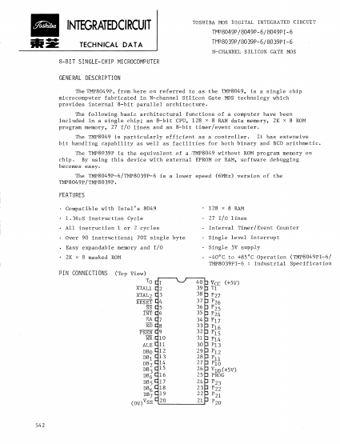

TMP8049P-6 8-BIT SINGLE-CHIP MICROCOMPUTER

The TMP8049P, from here on referred to as the TMP8049, is a single chip microcomputer fabricated in N-channel Silicon Gate MOS technology which provides internal 8-bit parallel architecture. The following basic architectural functions of a computer have been included in a single chip; an 8-bit CPU,.

TMP8049P-6 Features

* Compatible with Intel's 8049 1.36~S Instruction Cycle All instruction 1 or 2 cycles Over 90 instructions; 70% single byte Easy expandable memory and I/O 2K x 8 masked ROM PIN CONNECTIONS (Top View) TO XTALI XTAL2 RESET SS INT EA RD PSEN WR ALE DBO DBI DB2 DB3 DB4 DBs DB6 DB7 (OV)VSS 128 x 8 RAM
