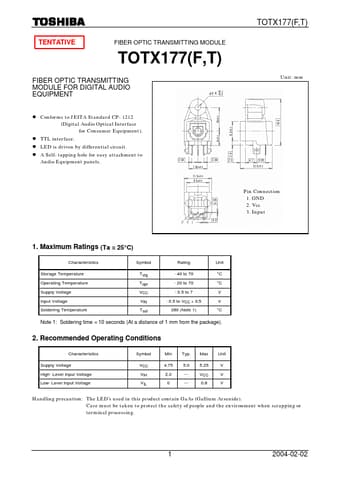

TOTX177 - FIBER OPTIC TRANSMITTING MODULE
TENTATIVE FIBER OPTIC TRANSMITTING MODULE TOTX177(F,T) FIBER OPTIC TRANSMITTING MODULE FOR DIGITAL AUDIO EQUIPMENT l Conforms to JEITA Standard CP- 1212 (Digital Audio Optical Interface for Consumer Equipment).
l TTL interface.
l LED is driven by differential circuit.
l A Self- tapping hole for easy attachment to Audio Equipment panels.
TOTX177(F,T) Unit: mm Pin Connection 1.
GND 2.
Vcc 3.
Input 1.
Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Storage Temperature Oper
