TPCA8057-H - Silicon N-Channel MOSFET

Product Overview

Toshiba

Part number	TPCA8057-H
Manufacturer	Toshiba
File Size	281.99 KB
Description	Silicon N-Channel MOSFET
Datasheet	TPCA8057-H Datasheet

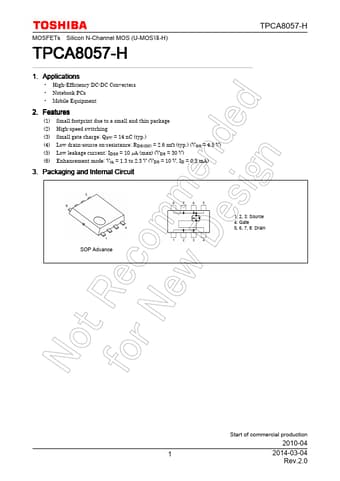

Additional preview pages of the TPCA8057-H datasheet.

(1) Small footprint due to a small and thin package (2) High-speed switching (3) Small gate charge: QSW = 14 nC (typ. ) (4) Low drain-source on-resistance: RDS(ON) = 2.6 mΩ (typ. ) (VGS = 4.5 V) (5) Low leakage current: IDSS = 10 µA (max) (VDS = 30 V) (6) Enhancement mode: Vth = 1.3 to 2.3 V (VDS = 10 V, ID = 0.5 mA) 3. Packaging and Internal Circuit TPCA8057-H SOP Advance 1, 2, 3: Source 4: Gate 5, 6, 7, 8: Drain Start of commercial production 2010-04 1 2014-03-04 Rev.2.0 TPCA8057-H 4. A.
