TTB1067B

Silicon PNP Transistors

TTB1067B Features

* (1) High DC current gain : hFE = 2000 (min) (VCE = -2 V, IC = -1 A) (2) Low collector-emitter saturation voltage : VCE(sat) = -1.5 V (max) (IC = -1 A, IB = -1 mA) (3) Complementary to TTD1509B 3. Packaging and Internal Circuit (Note) 1. Emitter 2. Collector 3. Base TO-126N Note: Although this

TTB1067B Datasheet (316.23 KB)

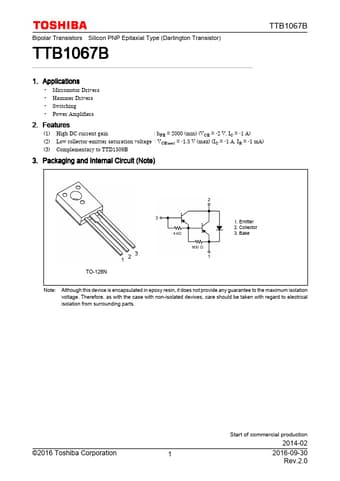

Preview of TTB1067B PDF

Datasheet Details

Part number:

TTB1067B

Manufacturer:

Toshiba ↗

File Size:

316.23 KB

Description:

Silicon pnp transistors.
Bipolar Transistors Silicon PNP Epitaxial Type (Darlington Transistor) TTB1067B TTB1067B 1. Applications Micromotor Drivers Hamm.
