TSE4041

Automotive Direction Indicator

TSE4041 Features

* Defective Lamp Detection

* Overvoltage Protection

* Short Circuit Detection and Relay Shutdown to Prevent Risk of Fire

* Reverse Battery Connection Protection

* Package:DIP8

* Compatible :CV1041EP Function diagram ADD:No.9 XiangNanYi Road ShuoFang Industrial Park.Wuxi New Distri

TSE4041 General Description

The circuit is designed to drive the direction indicator flasher relay. It consists of a network (R1,C1) to determine the oscillator frequency. Shunt resistor (Rs) to detect defective bulbs and short circuits in the system, and two current limiting resistors (R2/R3)to protect the IC against load dum.

TSE4041 Datasheet (118.14 KB)

Preview of TSE4041 PDF

Datasheet Details

Part number:

TSE4041

Manufacturer:

Trea Sure Star

File Size:

118.14 KB

Description:

Automotive direction indicator.

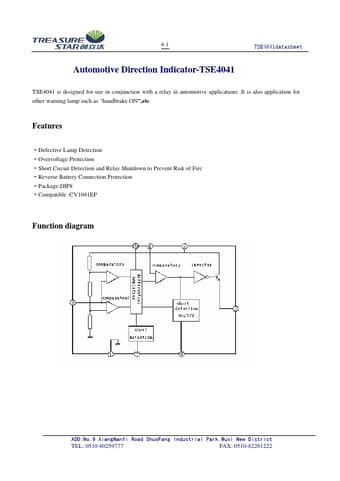

4-1 TSE4041datasheet Automotive Direction Indicator-TSE4041 TSE4041 is designed for use in conjunction with a relay in automotive applications .It is .
