TQM7M5003

Quad-Band GSM/EDGE Polar Power Amplifier Module

TQM7M5003 Features

* GSM/EDGE Multi-Mode Capability Optimized for Operation with Qualcomm’s Multi-mode Chip Sets - 38dB Typical ACPR (200KHz) - 66dB Typical ACPR (400 KHz) - 76dB Typical ACPR (600 KHz) 1% Typical EVM rms

TQM7M5003 General Description

The TQM7M5003 is a small (7x7mm), GSM/EDGE PAM for handset applications. This module has been optimized for excellent EDGE efficiency , ACPR and EVM in an open loop polar modulation environment at EDGE class E2+ operation while maintaining high GSM/GPRS efficiency. The TQM7M5003 is fanout compatible.

TQM7M5003 Datasheet (353.19 KB)

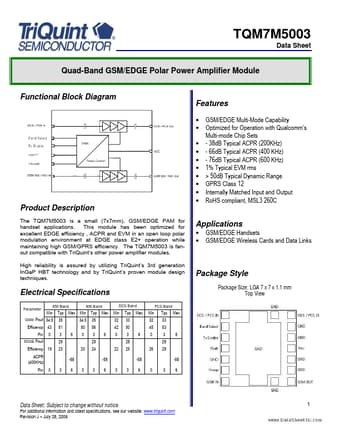

Preview of TQM7M5003 PDF

Datasheet Details

Part number:

TQM7M5003

Manufacturer:

TriQuint Semiconductor

File Size:

353.19 KB

Description:

Quad-band gsm/edge polar power amplifier module.
