TQM7M5008

Quad-Band GSM/EDGE Polar Power Amplifier Module

TQM7M5008 Features

* Functional Block Diagram

* GSM/EDGE Multi-Mode Capability Optimized for Operation with Qualcomm’s Multi-mode MSM6280/RTR6275 chip sets - 87dBm typical Rx Noise - 38dB Typical ACPR (200KHz) - 6

TQM7M5008 General Description

The TQM7M5008 is a small (7x7mm), GSM/EDGE PAM for handset applications. This module has been optimized for excellent EDGE efficiency , ACPR and EVM in an open loop polar modulation environment at EDGE class E2+ operation while maintaining high GSM/GPRS efficiency. The TQM7M5008 was optimized for op.

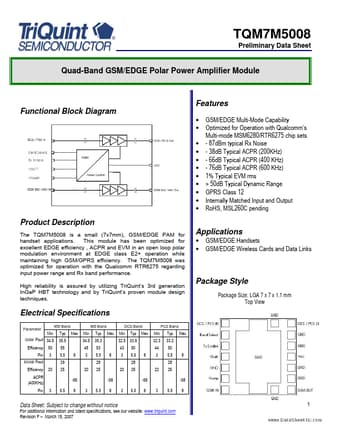

TQM7M5008 Datasheet (150.00 KB)

Preview of TQM7M5008 PDF

Datasheet Details

Part number:

TQM7M5008

Manufacturer:

TriQuint Semiconductor

File Size:

150.00 KB

Description:

Quad-band gsm/edge polar power amplifier module.
