TQM7M5013

Quad-Band GSM / GPRS / EDGE-Linear Power Amplifier Module

TQM7M5013 Features

* Digital Control Interface

* Low Current At Backed-Off Power Levels

* Input Power Controlled

* GMSK & 8PSK

* LB Has 4 modes

* HP, MP, LP, & ULP

* HB Has 3 modes

* HP, LP, & ULP

* HBT/PHEMT High Efficiency Technology

* H

TQM7M5013 General Description

The TQM7M5013 is an input power controlled, multiple gain state, quad band, GSM/EDGE PAM designed for use with the Qualcomm QTR/RTR8600 WEDGE solutions. This highly efficient PAM significantly improves talk-time while still providing an easy to use solution in a small form factor. The PA output powe.

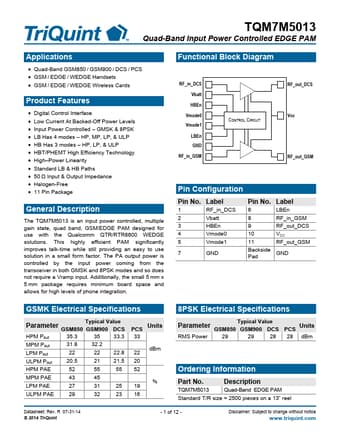

TQM7M5013 Datasheet (225.57 KB)

Preview of TQM7M5013 PDF

Datasheet Details

Part number:

TQM7M5013

Manufacturer:

TriQuint Semiconductor

File Size:

225.57 KB

Description:

Quad-band gsm / gprs / edge-linear power amplifier module.
TQM7M5013 Quad-Band Input Power Controlled EDGE PAM Applications

* Quad-Band GSM850 / GSM900 / DCS / PCS

* GSM / EDGE / WEDGE Handset.
