5206478-2 Datasheet - Tyco Electronics

5206478-2 Cable Clamps

This instruction sheet covers the assembly of the Female Screwlock Kits and the Male Screw Retainer Kits onto AMPLIMITE * connectors. These kits are designed to secure mating connectors in panel *mounted or free *hanging applications. For panel *mount applications, it is rec.

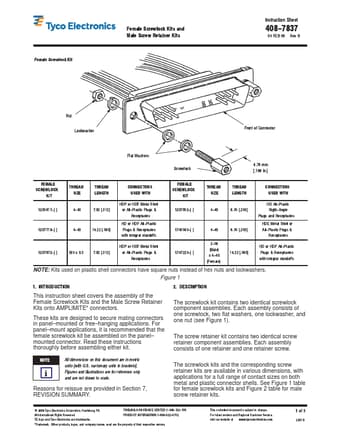

Instruction Sheet Female Screwlock Kits and Male Screw Retainer Kits 03 FEB 09 408-7837 Rev B Female Screwlock Kit Nut Lockwasher Front of Connector Flat Washers Screwlock FEMALE SCREWLOCK KIT FEMALE SCREWLOCK KIT 4.78 mm [.188 In.] THREAD SIZE THREAD LENGTH CONNECTORS USED WITH THREAD SIZE THREAD LENGTH CONNECTORS USED WITH 5205817-[ ] 4-40 7.92 [.312] HDP or HDF Metal Shell or All-Plastic Plugs & Receptacles HD or HDF All-Plastic Plugs & Receptacles with Integral standoffs HDP or .

5206478-2 Datasheet (165.71 KB)
