520.47 Datasheet, Processor, Elmos

520.47 Features

  • Processor
  • Supply voltage: 4.75 V to 5.25 V
  • Supply and output protection: -18/+35 V
  • Simultaneous signal processing for two sensors
  • Fully digital calibration

PDF File Details

Part number:

520.47

Manufacturer:

Elmos

File Size:

965.41kb

Download:

📄 Datasheet

Description:

Dual-bridge sensor signal processor. This IC provides low-noise sensor signal conditioning with two individual 15-bit Delta-Sigma ADCs for two resistive bridge sensors, i

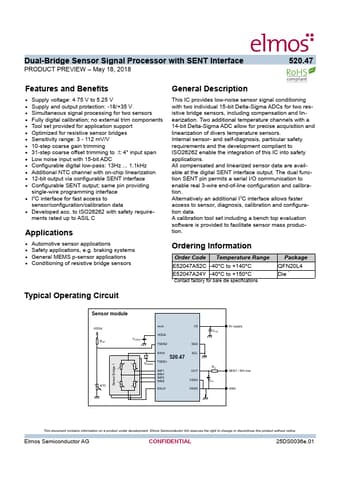

Datasheet Preview: 520.47 📥 Download PDF (965.41kb)
Page 2 of 520.47 Page 3 of 520.47

520.47 Application

  • Applications
  • Automotive sensor applications
  • Safety applications, e.g. braking systems
  • General MEMS p-sensor applicatio

TAGS

520.47
Dual-Bridge
Sensor
Signal
Processor
Elmos
