AM55-0016RTR Datasheet - Tyco Electronics

Switched Low Noise Amplifier 800 - 1000 MHz

AM55-0016RTR Features

* MSOP-8 R 010 ID PIN

* High Gain State: - Gain: 16dB, Noise Figure: 1.6dB - Input IP3: +3dBm (@2.7V, 25mA) Low Gain State: - Insertion Loss: 5dB, Input IP3: +24dBm Single Supply: +2.7 to +5 VDC Low Cost MSOP-8 Plastic Package Adjustable current: 10 t

AM55-0016RTR General Description

M/A-COM’s AM55-0016 is a high dynamic range, switchable low noise amplifier in a low cost, MSOP 8-lead, surface mount, plastic package. The design utilizes a patented switching technique to provide a low insertion loss, high input IP3 bypass state in parallel with the high gain, low noise state. The.

AM55-0016RTR Datasheet (92.94 KB)

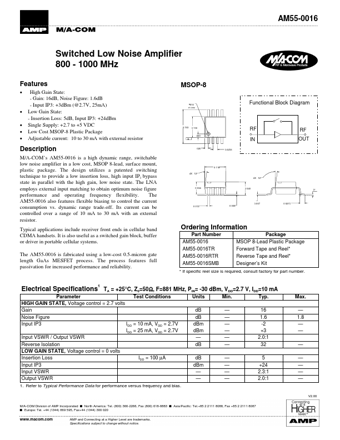

Preview of AM55-0016RTR PDF

Datasheet Details

Part number:

AM55-0016RTR

Manufacturer:

Tyco Electronics

File Size:

92.94 KB

Description:

Switched low noise amplifier 800 - 1000 mhz.
