ANP-C-115 - 1.9 GHz Patch Antenna

Datasheet Summary

Description

The ANP-C-115 is a micropatch antenna that provides hemispherical coverage and that is circularly polarized to maximize immunity to fading in high multipath environments.

The design is simple, rugged, compact, and easily adapted to custom applications.

Features

x x x x x Hemispherical/Omnidirectional Flat Configuration Rugged/Durable Low VSWR Circular Polarization Minimizes Multipath Effects V3.00.

Tyco Electronics

📥 Download Datasheet

Datasheet Details

Part number	ANP-C-115
Manufacturer	Tyco Electronics
File Size	105.31 KB
Description	1.9 GHz Patch Antenna
Datasheet	ANP-C-115 Datasheet
Additional preview pages of the ANP-C-115 datasheet.

📁 Similar Datasheet

ANP007 - Dual Buck Converter (Anachip)
ANP013 - 2A PWM Buck DC/DC Converter (Anachip)
ANP015 - Application Note AP2011 High Efficiency Synchronous PWM Controller (Anachip)
ANP2N65B - N-Chanel Power MOSFET (Angstrem)
ANP4N60B - N-Chanel Power MOSFET (angstrem)
ANPOxxxxxx - Sharma Ceramic Capacitors (Sharma Electro Components)

Other Datasheets by Tyco Electronics

ANPC-185 - GPS Antenna

Full PDF Text Transcription

Click to expand full text

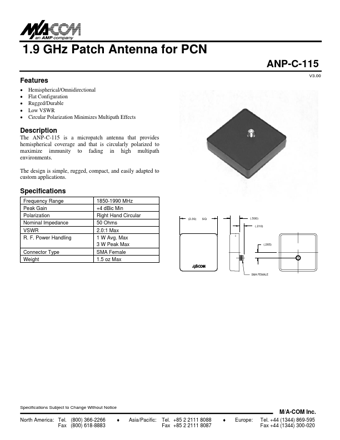

1.9 GHz Patch Antenna for PCN ANP-C-115 Features x x x x x Hemispherical/Omnidirectional Flat Configuration Rugged/Durable Low VSWR Circular Polarization Minimizes Multipath Effects V3.00 Description The ANP-C-115 is a micropatch antenna that provides hemispherical coverage and that is circularly polarized to maximize immunity to fading in high multipath environments. The design is simple, rugged, compact, and easily adapted to custom applications. Specifications Frequency Range Peak Gain Polarization Nominal Impedance VSWR R. F. Power Handling Connector Type Weight 1850-1990 MHz +4 dBic Min Right Hand Circular 50 Ohms 2.0:1 Max 1 W Avg. Max 3 W Peak Max SMA Female 1.5 oz Max (2.30) SQ (.500) (.210) (.265) SMA FEMALE Specifications Subject to Change Without Notice M/A-COM Inc.
