AT10-0017-TB Voltage Variable Absorptive Attenuator/ 1700 - 2000 MHz

M/A-COM's AT10-0017 is a PIN diode based voltage variable attenuator. This device is in a SOIC-16, wide body plastic surface mount package. These attenuators have linear operating power and input intercept point levels 15 20 dB better than GaAs FET MMIC voltage variable attenuators. They are ideally.

AT10-0017-TB Features

* n n n n n n n n n n SOW-16 Input IP3: +31 dBm Min (Full Attenuation Range) Input IP3 is 15 -20 dB Better than GaAs Linear Operation: +20 dBm Min. Plastic SOIC, Wide Body, SMT Package 35 dB Dynamic Range (With 30 mA Bias Current) Single Control Voltage 50 ohm Impedance Linear Driver, DR65-0002, Ava

AT10-0017-TB_TycoElectronics.pdf

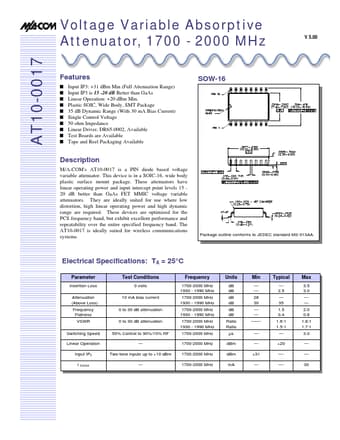

AT10-0017-TB Datasheet Preview — Preview of AT10-0017-TB PDF

Datasheet Details

Part number:

AT10-0017-TB

Manufacturer:

Tyco Electronics

File Size:

220.65 KB

Description:

Voltage variable absorptive attenuator/ 1700 - 2000 mhz.
