Part number: AT10-0019
Manufacturer: Tyco Electronics
File Size: 220.96KB
Download: 📄 Datasheet

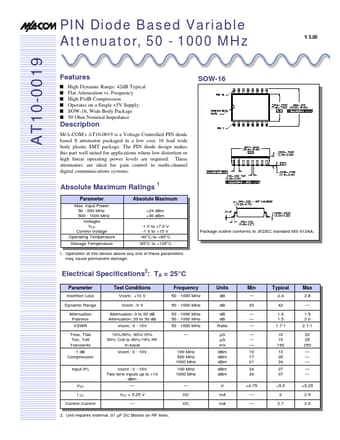

Description: PIN Diode Based Variable Attenuator/ 50 - 1000 MHz
n n n n n n
SOW-16
High Dynamic Range: 42dB Typical Flat Attenuation vs. Frequency High P1dB Compression Operates on a Single +5V Supply: SOW-16, Wide Body Package 50 O.
where low distortion or high linear operating power levels are required. These attenuators are ideal for gain control in.
M/A-COM's AT10-0019 is a Voltage Controlled PIN diode based π attenuator packaged in a low cost, 16 lead wide body plastic SMT package. The PIN diode design makes this part well suited for applications where low distortion or high linear operating po.
Image gallery
