AT20-0263 - Digital Attenuator/ 31 dB/ 5-Bit/ TTL Driver/ DC - 2 GHz

Datasheet Summary

Description

M/A-COM’s AT20-0263 is a GaAs FET 5-bit digital attenuator with a 1 dB minimum step size and 31 dB total attenuation.

This attenuator and integral TTL driver is in a ceramic 16-lead surface mount package.

Features

n Attenuation: 1 dB steps to 31 dB n Temperature Stability: ± 0.18 dB from.
40°C to +85°C n n n n n CR-12 Typical Low DC Power Consumption Surface Mount Package Integral TTL Driver Low Cost/High Performance 50 Ohm Nominal Impedance.

Datasheet Details

Part number	AT20-0263
Manufacturer	Tyco Electronics
File Size	223.30 KB
Description	Digital Attenuator/ 31 dB/ 5-Bit/ TTL Driver/ DC - 2 GHz
Datasheet	AT20-0263 Datasheet
Additional preview pages of the AT20-0263 datasheet.

📁 Similar Datasheet

AT2002 - (AT2002/2402/2702) AT Monaural Color TV (APEX)

AT2003 - Wide Input sensorless CC/CV 2A Buck Converter (Aplustek Integrated Circuits)

AT2004 - 4 Channel ADPCM Processor (Atelic Systems)

AT2004 - 4 Channels ADPCM Processor (Atelic)

AT2005B - AT2005B (ATE)

AT2005B - Power Supply Controller (ETC)

AT2008 - 8 Channel ADPCM Processor (Atelic Systems)

AT2008 - 8 Channels ADPCM Processor (Atelic)

AT202 - PHASE CONTROL THYRISTOR (Power Semiconductors)

AT202 - PHASE CONTROL THYRISTOR (Ansaldo)

Full PDF Text Transcription

Click to expand full text

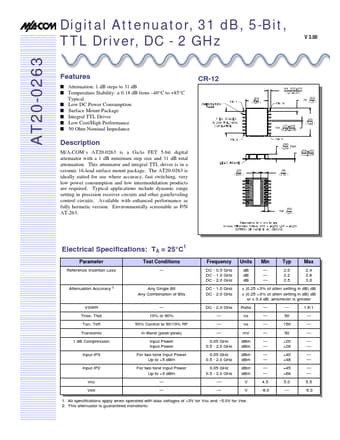

Digital Attenuator, 31 dB, 5-Bit, TTL Driver, DC - 2 GHz V 3.00 AT20-0263 Features n Attenuation: 1 dB steps to 31 dB n Temperature Stability: ± 0.18 dB from –40°C to +85°C n n n n n CR-12 Typical Low DC Power Consumption Surface Mount Package Integral TTL Driver Low Cost/High Performance 50 Ohm Nominal Impedance Description M/A-COM’s AT20-0263 is a GaAs FET 5-bit digital attenuator with a 1 dB minimum step size and 31 dB total attenuation. This attenuator and integral TTL driver is in a ceramic 16-lead surface mount package. The AT20-0263 is ideally suited for use where accuracy, fast switching, very low power consumption and low intermodulation products are required.
