AT20-0273 - Digital Attenuator/ 32 dB/ 2-Bit/ TTL Driver/ DC - 2 GHz

Product Overview

Tyco Electronics

📥 Download Datasheet

AT20-0273 Digital Attenuator/ 32 dB/ 2-Bit/ TTL Driver/ DC - 2 GHz by Tyco Electronics - Datasheet Preview — Datasheet preview – AT20-0273

Datasheet Details

Part number	AT20-0273
Manufacturer	Tyco Electronics
File Size	220.16 KB
Description	Digital Attenuator/ 32 dB/ 2-Bit/ TTL Driver/ DC - 2 GHz
Datasheet	AT20-0273 Datasheet

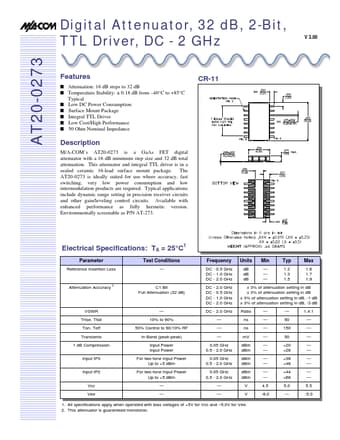

Additional preview pages of the AT20-0273 datasheet.

Product details

Description

M/A-COM’s AT20-0273 is a GaAs FET digital attenuator with a 16 dB minimum step size and 32 dB total attenuation.

Features

n Attenuation: 16 dB steps to 32 dB n Temperature Stability: ± 0.18 dB from.
40°C to +85°C n n n n n CR-11 Typical Low DC Power Consumption Surface Mount Package Integral TTL Driver Low Cost/High Performance 50 Ohm Nominal Impedance.
