CH20-0033-17G

Low Cost SMT 17 dB Bi-Directional Coupler 1700 - 2000 MHz

CH20-0033-17G Features

* q q q q q q q SO-8 PIN 8 .1497-.1574 (3.80-4.00) -B.2284-.2440 (5.80-6.20) .010(0.25) M B M Device is Bi-Directional Small Size and Low Profile Industry Standard SOIC-8 SMT Plastic Package Superior Repeatability Typical Insertion Loss 0.3 dB Typical Directivity 17 dB 2 Watt Power Handling Orientat

CH20-0033-17G General Description

M/A-COM’s CH20-0033-17G is an IC based monolithic bi-directional coupler in a low cost SOIC-8 plastic package. This 17 dB coupler is ideally suited for applications where power monitoring, small size, low insertion loss, superior repeatability and low cost are required. Typical applications include .

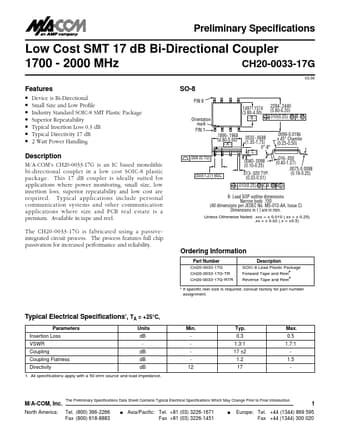

CH20-0033-17G Datasheet (99.81 KB)

Preview of CH20-0033-17G PDF

Datasheet Details

Part number:

CH20-0033-17G

Manufacturer:

Tyco Electronics

File Size:

99.81 KB

Description:

Low cost smt 17 db bi-directional coupler 1700 - 2000 mhz.
