CH20-0058-S

11 dB Directional Coupler 1500 - 2000 MHz

CH20-0058-S Features

* Space Qualified Designed to meet the Stringent Reliability Standards of Space Hardware 50 Ohms Nominal Impedance FP-1 Description M/A-COM’s CH20-0058-S is a unique type of 11 dB Directional Coupler designed to operate within the frequency range of 1500 MHz to 2000 MHz

CH20-0058-S General Description

M/A-COM’s CH20-0058-S is a unique type of 11 dB Directional Coupler designed to operate within the frequency range of 1500 MHz to 2000 MHz. Absolute Maximum Ratings1 Parameter Max. Input Power 10-500 MHz Operating Temperature Storage Temperature Absolute Maximum 1 Watt -40°C to +85°C -65°C to +125°.

CH20-0058-S Datasheet (18.43 KB)

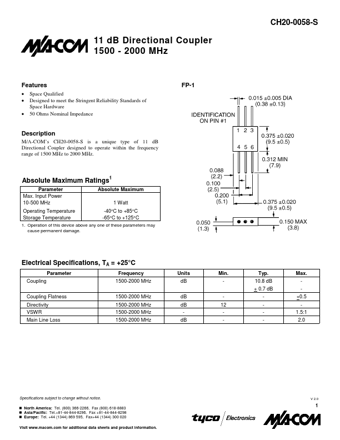

Preview of CH20-0058-S PDF

Datasheet Details

Part number:

CH20-0058-S

Manufacturer:

Tyco Electronics

File Size:

18.43 KB

Description:

11 db directional coupler 1500 - 2000 mhz.
